Setting Out - Boning Rods

On This Page...

Using Boning Rods
Profile Boards
Other Applications

Boning Rods and Sight-rails
The use of boning rods to establish levels is one of the very earliest construction technologies that is still in everyday use, thousands of years after they were used extensively on Sumerian and Ancient Egyptian building sites. The term 'boning rod' comes from and Old English term for a slope or gradient, a bone. It's one of those notions that's so simple, that it's hard to improve upon, and it's only the advent of cheap laser levels over the past few years that has seen this technique become less common.

The basic premise is that by establishing two fixed levels, it is a simple matter to use the line of sight to set any number of intermediate levels. The 'kit' consists of 3 T-shaped staffs that are typically identical, although when 'fixed' sight rails are used, the 'traveller' may be constructed to a specified length. Most paving and groundworks contractors will have a set of boning rods that they can use on successive jobs, but where a large number of levels are to be established, fixed sight rails may be preferred.
Typical Boning rods

Checking boning rod When using a set of 3 boning rods, one rod is set up at a specified height above a known level. Normally, some form of stable, temporary platform will be constructed from bricks or broken flagstones so that the top of the platform is set to the correct level. The boning rod is then simply stood atop the platform and held in position by an operative or a brace. Another rod is similarly set up at the next level point. It is essential that the cross-pieces of these rods are perfectly horizontal, and they should be checked with a spirit level before use.

The third rod is known as the Traveller, and this can be held in position at any point between the two established rods. A steel pin or timber peg will be driven into the ground at the point where an intermediate level is required and the Traveller held against or on top of the pin. An operative at one of the established levels then sights through over the Traveller to the backsight rod, and instructs the operative holding the Traveller to raise or lower it accordingly until it 'bones-in' between the foresight and backsight. Once the Traveller is at the correct level, the operative can mark the pin at the base of the staff or adjust the height of a peg to the required level. Using Boning Rods

This point has now been set to a plane level between the two established levels. Any number of intermediate levels can be set in this manner, and the spread of the cross-pieces allows for some deviation from true line to be accommodated, as when setting out curves or arcs. Once the intermediate levels have been established, adjustments can be made as required; for example, we may have two points that are level with each other and wish to establish an intermediate level that is 100mm higher to generate fall for a pavement. The intermediate level can be established as outlined above and then 100mm added to the height.

traveller in trench Boning-in is especially useful for excavations and trenches, as proper sight-rails can be set up in advance and a traveller constructed to guide excavation depth to whatever reduced level is required. For drainage projects, it's usual to have the sight-rails set up outside the excavation limits and up to 50m apart. A mechanical excavator can work its way along the line of the trench and rely on the banksman to use the traveller to test whether excavation depth is acceptable, too deep or not deep enough every few metres of linear excavation.

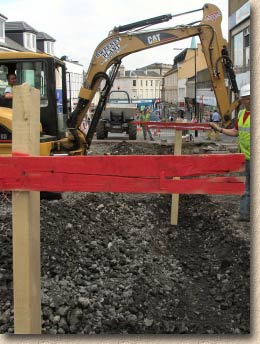

Boning rods in use on site:
Opposite: a backsight rod is set up by attaching it to a brace that will hold it erect on the surface of the existing road at the lower end of the excavation.
Below Left: A foresight is positioned at the opposite end of the excavation. As you can see, only the very best quality timber is used to construct these high-tech surveying aids!
Below right: One operative holds the Traveller Rod within the excavation, while a second operative peers over the Foresight Rod and sights through to the Backsight Rod. As should be apparent, when the Foresight and Backsight rods are visually aligned, the Traveller Rod will be "high" indicating that further excavation is required at that particular spot.

Click click here for larger image showing all three rods.
boning rod

Profile Boards
Sight-rails are often used when setting out house foundations, when they are sometimes known as 'Profile Boards'. These are established outside the limit of excavation, and always in pairs. They can then be used not only as sight-rails with a traveller to check on excavation depth, but also to set levels for top of concrete foundation, internal floor level, finished ground level, etc. Sight Rails/Profile Boards
Sight-rails set up to guide excavation of strip footings for a typical house

These Profile Boards are also used by the groundworker to establish foundation width, and by the Bricklayers when they come to start laying the masonry. A number of nails are knocked into the top of the Profile Board directly upon the relevant line to which it relates. The groundworker will use the centre line and foundation limits to guide the line of excavation, and use a Traveller with the Profile Boards to check the depth of the excavation. The Brickies will rely on the Building Line nails to guide their setting out, especially the positioning of corners.

Other uses of Sight-rails, Profile Boards and Travellers

These techniques are used in many areas of groundworks, such as gradient formation, trench cutting, area cut and re-grade and cutting/embankment batter.

This diagram below illustrates the use of double sight-rails to guide the excavation of a steady gradient trench through undulating ground.

The traveller length has to be adjusted between sets of sight-rails. In this simple example, each 'lift' of the sight-rails has been set at 1000mm, and so the traveller length must increase by the same amount to maintain accuracy.

Oblique sight-rails are used to guide the amount of batter used when creating an embankment or excavating a cutting. These sight-rails are usually placed outside the working area, but in a position such that they can give a quick confirmation that the work is as required.

Setting-Out Pages

Construction lines, perpendiculars and simple arcs
Obstructed Arcs
Working Lines and Levels
Boning Rods and Sight-rails
Automatic and Laser Levels

Geometry for Paving
